SPECIFICATIONS

Brand Name: PowMr
Origin: Mainland China
Hign-concerned Chemical: None
Certification: CE
Size: 110*334*423 cm
Output Frequency: 50Hz/60Hz
Output Type: SINGLE
is_customized: Yes
Output Current: MPPT 120A
Output Power: 1 - 200KW
Weight: 10KG
Is Smart Device: YES
Model Number: POW-LVM3.6M-24V
Output Voltage Waveform:: Pure Sine Wave
Maximum PV Input Power:: 4200W
Rated Input Voltage:: 110/120VAC
Battery Type:: 24V Lead Acid or Lithium Battery
Communication Interface 1:: None
Communication Interface 2:: None

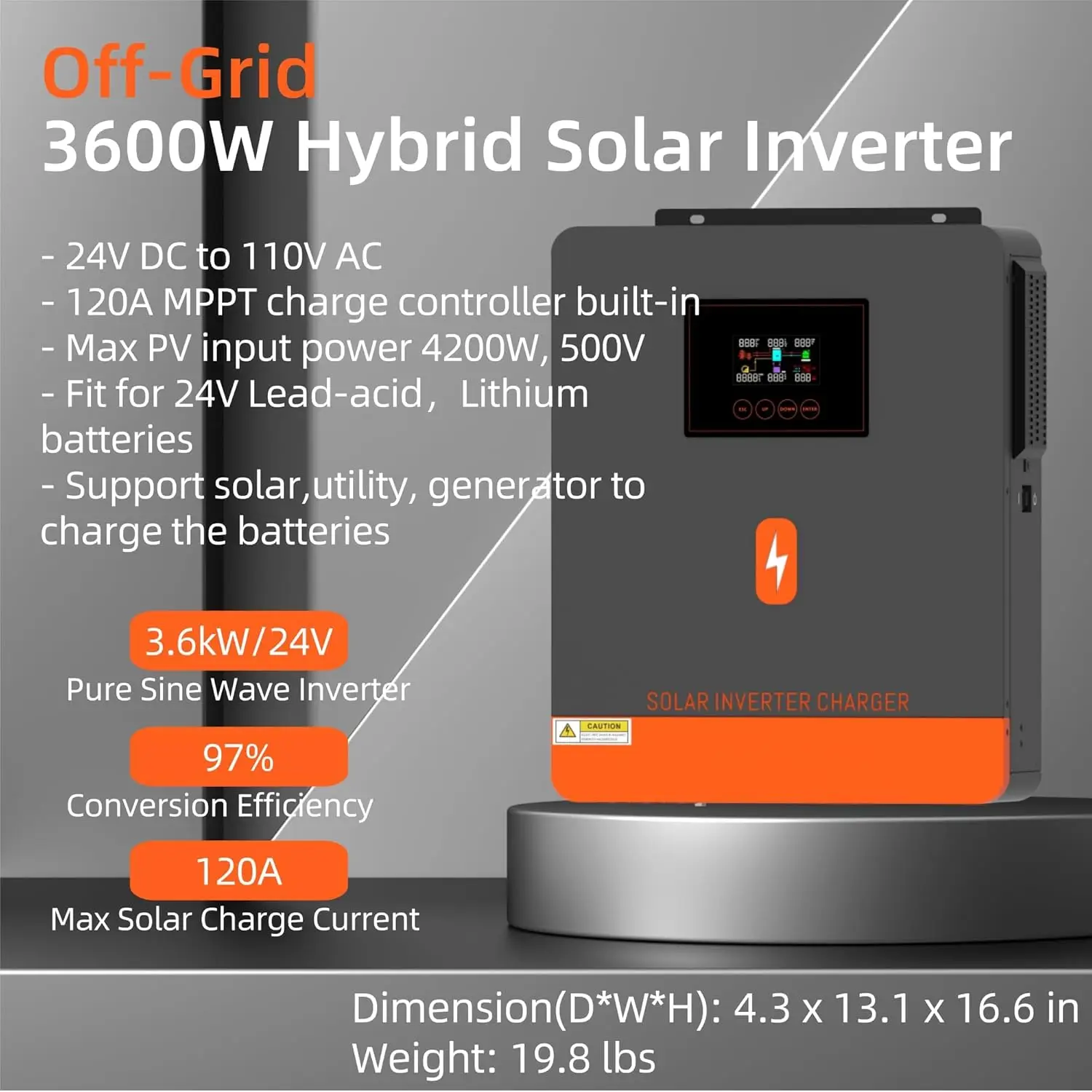

PowMr 3.6KW Hybrid Solar Inverter 24V 110V Off Grid Pure Sine Wave Inverter Single Phase with MPPT 120A Solar Battery Charger









【Pure Sine Wave Solar Inverter】
3.6KW solar inverter 24V 110Vac adopts full digital voltage and current double closed-loop control, advanced SPWM technology, and output of pure sine wave. It is a new solar inverter charger built-in 120A Mppt controller and an 80A AC Charger. Support Utility, Generator, and Solar Charge




Compatible with Multiple Battery Type
Off-Grid solar inverter 24V 3600w activates lithium battery by PV solar or mains, allowing access to the 24V lead-acid (Seal, AGM, Gel, Flooded) battery and lithium battery. suggest battery cable size: 2awg



Technical Specifications

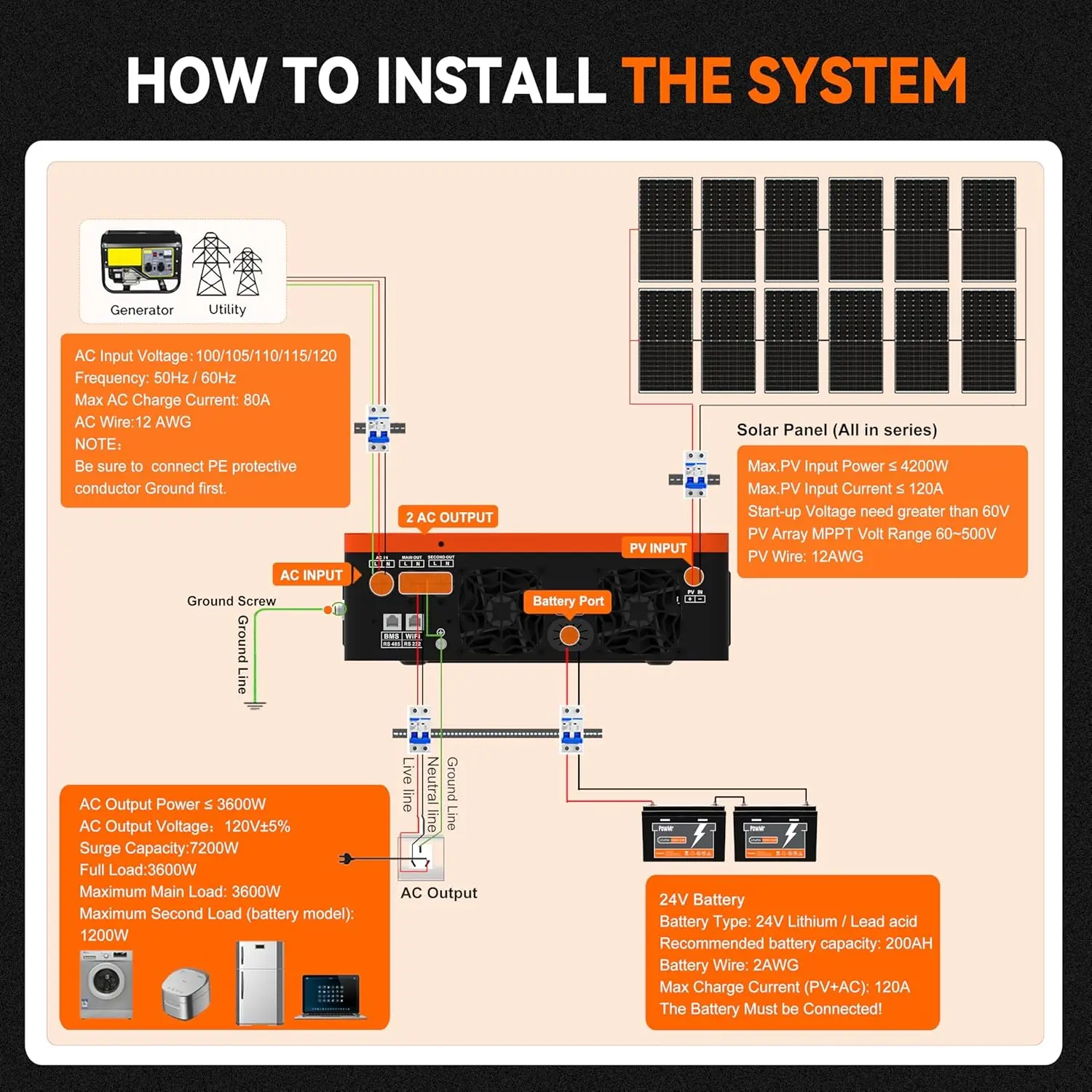

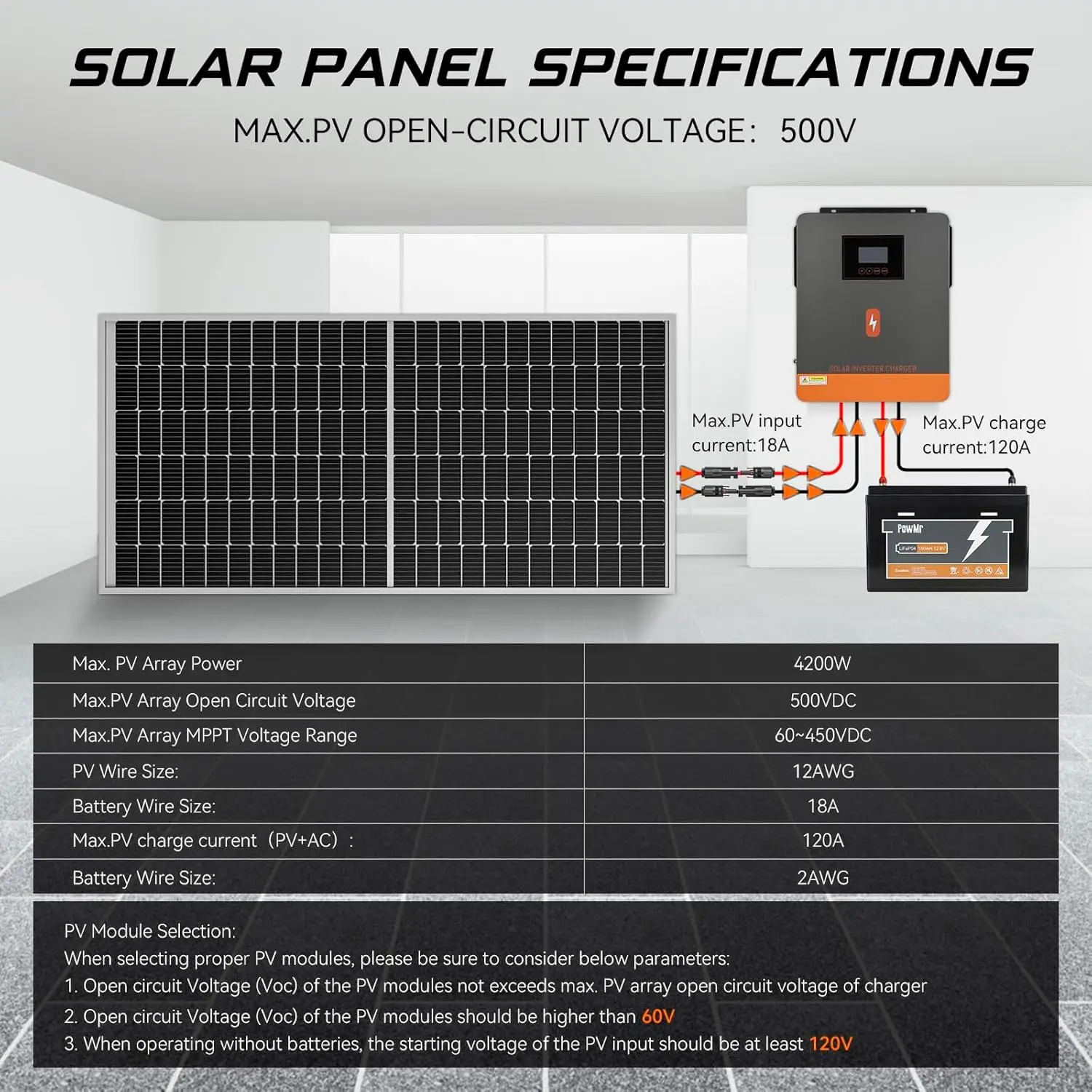

3600W solar inverter pure sine wave 24V DC to 120V AC. Max PV Input: 4200W, 500V(VOC), 18A; and Max.PV output: 120A; Hybrid charging Max charger current (AC charger+PV charger): 120A; PV Starting voltage >60V, suggest all solar panels in series. suggest PV and AC cable size: 12awg
